Views: 0 Author: Site Editor Publish Time: 2026-08-03 Origin: Site
Commercial landscape projects demand lighting systems that balance aesthetic intent with rigorous safety, liability, and durability standards. Specifiers and property managers frequently face premature fixture failure, photometric non-compliance, and escalating maintenance workloads due to misaligned material selection and poor environmental planning. Selecting the wrong fixture type or failing to account for site-specific stressors often results in rapid degradation, leaving pathways dark and safety perimeters compromised. Commercial Outdoor Lighting must perform reliably across decades of exposure to moisture, thermal cycling, and physical impact.
This guide provides a technical evaluation framework for selecting commercial-grade fixtures, assessing manufacturer reliability, and mitigating installation risks in large-scale landscape environments. You will learn how to navigate photometric compliance, evaluate metallurgy for corrosion resistance, and structure a resilient system architecture that prevents common electrical failures in the field.
Material selection dictates lifespan: Specify marine-grade aluminum, brass, or copper based on site-specific environmental stressors (e.g., coastal salinity, soil acidity) rather than initial unit cost.
Photometric compliance is non-negotiable: Commercial projects must adhere to local zoning laws, including Dark Sky compliance, BUG (Backlight, Uplight, Glare) ratings, and precise lumen output requirements.
System architecture drives scalability: Choosing between line voltage (120V/277V) and low voltage (12V/24V) systems impacts trenching costs, safety liabilities, and long-term flexibility.
Vendor vetting mitigates project delays: Evaluating an outdoor lighting manufacturer requires analyzing their warranty structures, component availability, and lead times, not just their product catalog.
A photometric study serves as the foundational blueprint for any large-scale exterior illumination project. It maps the exact distribution of light across a site, ensuring uniform coverage and eliminating hazardous dark zones. Engineers use these studies to calculate foot-candles at ground level, verifying that the proposed layout meets safety standards for pedestrian and vehicular traffic. Without a photometric plan, specifiers risk over-illuminating areas, which wastes energy, or under-illuminating specific junctions, which increases liability.
Local municipal codes strictly regulate light trespass and glare. Commercial installations must contain illumination within property lines. Dark Sky compliance requires fixtures to direct light downward, minimizing upward scatter that contributes to light pollution. Specifiers must verify the BUG ratings of each luminaire. High-traffic zones, such as main entrances and transit stops, typically demand higher baseline foot-candle requirements compared to ambient landscape areas, where lower lumen outputs suffice to establish mood and depth.
Effective site illumination divides a property into distinct functional zones. Wayfinding and safety zones prioritize clear visibility along pathways, stairs, and ramps. Security perimeters require consistent, overlapping light pools to deter unauthorized access and support surveillance camera operations. Aesthetic focal points, such as heritage trees or water features, utilize targeted beams to create visual hierarchy without overwhelming the surrounding environment.
Each zone demands specific success metrics. Pathway lighting might require a minimum of 1 to 2 foot-candles for safe navigation, while security perimeters often need higher uniformity ratios. When illuminating flora, the Color Rendering Index (CRI) becomes a primary metric. A CRI of 80 or higher ensures that the natural colors of foliage and hardscape materials appear accurate and vibrant under artificial light. Establishing these metrics early prevents mismatched color temperatures and uneven light distribution across the site.
Evaluating the financial viability of a lighting system requires looking past the initial purchase order. Upfront capital expenditures represent only a fraction of the financial commitment. Long-term operational expenditures, including energy consumption, routine maintenance, and component replacement, dictate the true financial impact of the installation.
Energy efficiency calculations must account for the specific wattage of the LED fixtures, the efficiency of the drivers, and the operational hours dictated by the site's astronomical timers or photocells. Furthermore, specifiers must factor in planned maintenance cycles. Fixtures that require specialized labor or heavy equipment to access—such as high-mast pole lights or deeply integrated hardscape fixtures—will incur significantly higher maintenance costs over a 15-year lifecycle compared to easily accessible ground-level luminaires.
Selecting bollards and path lights requires analyzing height-to-spread ratios. A taller bollard casts a wider pool of light, reducing the total number of fixtures needed, but it must feature robust optical glare control to prevent blinding pedestrians. Vandal resistance is paramount in public spaces. Fixtures must utilize shatter-resistant polycarbonate lenses and tamper-proof hardware. Integrating garden lighting into softscape areas highlights foliage textures while keeping the light source concealed.
Stairs, retaining walls, and boardwalks present significant safety liabilities. Heavy-duty deck and hardscape-integrated step lights mitigate these risks by casting illumination directly onto the tread surface. These fixtures must sit flush with the mounting surface to avoid creating trip hazards. Shielded designs ensure the light output remains focused downward, guiding foot traffic safely without contributing to ambient light pollution.
Directional fixtures serve to graze or wash commercial facades, hardscapes, and historical masonry. Wall washing utilizes wide-beam fixtures placed further from the surface to create a smooth, even layer of light, erasing shadows and highlighting the overall scale of a building. Grazing places the luminaire close to the surface, casting light at a steep angle to emphasize texture, such as the mortar joints in brickwork or the natural cleft of stone. Specifying architectural lighting requires precise optical control to achieve these effects without spilling light into adjacent windows or the night sky.
Beam spread selection depends entirely on target distance, canopy height, and object width. Narrow spot beams are ideal for illuminating tall, slender objects like columns or palm trees. Wide flood beams effectively cover broad canopies or expansive building facades. Specifiers must match the beam angle to the physical dimensions of the target to maximize efficiency and visual impact.

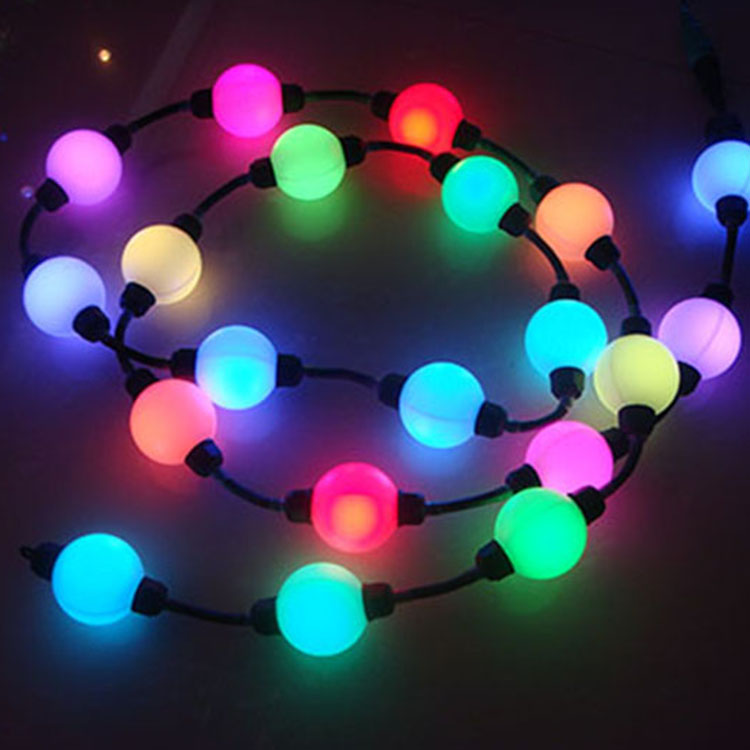

Dynamic color-changing systems offer significant utility for commercial branding, seasonal events, and hospitality environments. Implementing RGB outdoor lighting allows property managers to alter the visual identity of a facade or landscape at the push of a button. These systems can highlight architectural features in corporate colors or provide festive illumination during holidays without requiring physical gel changes or fixture replacements.
However, specifiers must evaluate the trade-offs between static color temperatures and complex color-tuning systems. Static white fixtures are simpler to install, require less maintenance, and generally offer higher lumen output per watt. RGB and RGBW systems require sophisticated control protocols, specialized wiring, and ongoing software management. The decision must align with the site's operational capabilities and long-term programming goals.
Mounting hardware dictates the stability and aiming accuracy of a luminaire. Knuckle mounts provide adjustable aiming angles for ground-level spotlights, while slipfitter mounts secure heavy floodlights to standard tenons on poles. Yoke or trunnion mounts offer robust, dual-point attachment for high-output fixtures on flat surfaces. Post-top options integrate seamlessly into pedestrian-scale poles for uniform area illumination.
Site-specific conditions often require specialized mounting solutions. Tree installations demand non-restrictive straps that accommodate trunk growth without damaging the cambium layer. Wall junctions require sealed canopy boxes to prevent water ingress at the electrical connection point. For ground installations in high-traffic areas, concrete-pour commercial surfaces necessitate heavy-duty anchor bolts and flush-mount housings that can withstand the weight of maintenance vehicles and foot traffic.
Environmental sealing determines a fixture's survival rate in the field. The Ingress Protection (IP) rating system defines the level of defense against dust and moisture. For general commercial use, IP65 is the absolute baseline, protecting against dust ingress and low-pressure water jets from irrigation systems. Fixtures installed in low-lying areas prone to heavy rain require an IP67 rating, which withstands temporary immersion. Submersible applications, such as fountains or reflection pools, mandate IP68 ratings for continuous underwater operation.
IP Rating | Dust Protection | Moisture Protection | Best Commercial Application |
|---|---|---|---|
IP65 | Complete protection | Low-pressure water jets | Standard pathways, building facades, elevated hardscapes |
IP67 | Complete protection | Temporary immersion (up to 1m) | Low-lying garden beds, areas prone to heavy pooling |
IP68 | Complete protection | Continuous submersion | Fountains, reflection pools, water features |
Mechanical resilience is equally important. The IK rating system measures a luminaire's resistance to physical impact. Commercial environments expose fixtures to landscaping equipment, pedestrian traffic, and potential vandalism. An IK08 rating provides protection against a 5-joule impact, suitable for standard pathways. High-risk areas demand IK10-rated fixtures, which can absorb a 20-joule impact without shattering the lens or compromising the internal electronics.
The physical housing of a luminaire must withstand years of exposure to UV radiation, moisture, and soil chemistry. Cast brass and raw copper offer exceptional longevity. These materials naturally patinate over time, forming a protective oxide layer that prevents structural degradation. While heavier and often more resource-intensive to produce, brass and copper excel in highly corrosive environments. Powder-coated aluminum provides a lighter, highly customizable alternative. However, the durability of aluminum depends entirely on the quality of the pre-treatment and the thickness of the powder coat finish.
Specifiers must avoid combining dissimilar metals in mounting hardware, which triggers galvanic corrosion when exposed to moisture. Using stainless steel screws on an aluminum housing without a dielectric barrier will cause the aluminum to rapidly degrade. In coastal or high-humidity environments, marine-grade finishes are mandatory. These specialized coatings undergo extensive salt-spray testing to ensure they resist blistering, peeling, and oxidation in saline-heavy atmospheres.
System architecture dictates installation methods and long-term safety. Line voltage systems (120V/277V) excel in delivering high-lumen output over long distances. They form the backbone of heavy commercial infrastructure, powering large pole lights and massive facade floods. However, line voltage requires deep trenching, rigid conduit, and licensed electricians for every connection, significantly increasing installation timelines and civil work requirements.
Conversely, 12V or 24V low voltage configurations provide safer, more adaptable landscape lighting solutions. Low voltage cables can be directly buried at shallower depths, allowing for easier adjustments as the landscape matures. While installation is faster, low voltage systems demand rigorous voltage drop calculations. Specifiers must carefully plan wire gauges, run lengths, and transformer locations to ensure fixtures at the end of a run receive adequate power to maintain consistent light output and color temperature.
The LED driver acts as the engine of the luminaire, regulating the electrical current. Commercial-grade drivers must withstand severe thermal cycling and moisture exposure. Potted drivers, which are fully encapsulated in a thermally conductive epoxy, offer superior protection against vibration and water ingress compared to unpotted alternatives. Multi-tap transformers are essential for low-voltage systems, allowing installers to adjust the output voltage to compensate for line loss on longer cable runs.
Modern commercial installations increasingly rely on advanced control protocols. DMX (Digital Multiplex) is the standard for complex RGB systems, enabling rapid, synchronized color changes across hundreds of fixtures. DALI (Digital Addressable Lighting Interface) allows for individual fixture addressing, providing granular control over dimming and fault reporting. For simpler applications, standard 0-10V dimming provides reliable, smooth intensity adjustments for static white fixtures.
Selecting a reliable outdoor lighting manufacturer requires looking past the marketing materials and auditing their engineering standards. Use this six-step framework to evaluate potential vendors:
Product Certification: Verify all fixtures carry active UL or ETL listings for wet locations. Check for DLC qualification if energy rebates are a project requirement.
Engineering Validation: Demand access to independent testing data. Review photometric files (.IES) for layout planning, LM-79/LM-80 reports for LED performance, and salt-spray testing duration data for finish durability.
Sample Evaluation: Never specify a large quantity without physically inspecting a sample. Assess the quality of the welds, the thickness of the gaskets, and the integrity of the cable glands.
Warranty Transparency: Read the complete legal terms. Confirm coverage limits, labor allowances, and the specific process for filing non-prorated claims.
Technical and Design Support: Evaluate the manufacturer's ability to provide engineering assistance, custom mounting solutions, and rapid photometric layout services.
Long-Term Viability: Audit the vendor's inventory holding capacity and history of product line continuity to ensure replacement parts will be available years down the line.
A commercial warranty document reveals a manufacturer's true confidence in their product. Specifiers must differentiate between coverage components. A 10-year warranty might apply only to the cast aluminum housing, while the LED array and driver are only covered for three to five years. Understanding these distinctions prevents unexpected maintenance expenses when internal components fail before the physical housing.
Identify red flags in the warranty language. Pro-rated clauses reduce the payout value of the warranty over time, shifting the financial burden back to the property owner. Exclusions for specific weather conditions, such as coastal salt spray or extreme ambient temperatures, render the warranty useless in harsh environments. Look for straightforward, non-prorated warranties that cover the complete luminaire assembly.
Project schedules rely on predictable material delivery. Specifying manufacturers with domestic assembly operations or robust local warehousing prevents catastrophic project delays caused by international shipping bottlenecks. Clear communication regarding lead times for both standard and custom fixtures is essential for coordinating with electrical contractors and landscaping crews.
A commercial lighting system operates on a 10-to-15-year lifecycle. Over this period, lenses will scratch, gaskets will compress, and drivers will eventually reach the end of their operational life. Evaluate the manufacturer's commitment to component availability. The ability to order specific replacement parts—rather than replacing the entire luminaire—drastically reduces long-term maintenance budgets and minimizes site disruption.
Voltage drop remains the primary cause of poor performance in low-voltage landscape systems. As electrical current travels along a wire, resistance causes the voltage to decrease. If the voltage drops below the fixture's operating threshold at the end of a long run, the light output will diminish, and the color temperature may shift noticeably. This creates an uneven, unprofessional appearance across the site.
Mitigation requires precise electrical planning. Installers must select the proper wire gauge based on the total wattage and the length of the run. Utilizing a center-feeding technique—where the power source connects to the middle of the fixture run rather than the end—distributes the voltage more evenly. Furthermore, utilizing multi-tap transformers allows technicians to boost the starting voltage to ensure the final fixture on the line receives the required 12V.
LEDs do not burn out like traditional incandescent bulbs; they experience lumen depreciation over time. This degradation accelerates rapidly if the LED operates at high temperatures. Poor heat dissipation in enclosed fixtures or installations in high-ambient-temperature environments will cause premature failure of both the diode and the internal driver.
To mitigate thermal risks, specify fixtures designed with engineered heat sinks that draw heat away from the LED board and dissipate it into the surrounding air or earth. Verify the manufacturer's LM-70 and LM-80 test reports, which project the lumen maintenance of the LED package over time. Proper thermal management ensures the fixture delivers its rated light output for tens of thousands of hours.
Fixtures installed directly in the soil are vulnerable to shifting. Freeze-thaw cycles cause ground heave, pushing stakes out of alignment. Poor soil compaction or heavy rain can cause fixtures to lean, destroying the intended photometric layout and creating a disorganized appearance.
Mitigate mounting instability by utilizing commercial-grade ground stakes made of heavy-duty brass or composite materials, rather than standard plastic spikes. In loose soil or high-traffic areas, utilize concrete pour kits to anchor the fixture permanently. For surface-mounted fixtures, heavy-duty mounting canopies and deep-set anchor bolts ensure the luminaire remains locked in its precise aiming position regardless of environmental conditions.
Conduct a site-specific environmental audit to determine the necessary IP ratings, IK ratings, and metallurgical requirements for your fixtures.
Request independent testing data, including LM-79/LM-80 reports and photometric files, to validate manufacturer performance claims.
Order physical samples of shortlisted fixtures to inspect build quality, gasket seals, and mounting hardware before finalizing the specification.
Collaborate with an electrical engineer to map out voltage drop calculations and transformer placements for low-voltage systems.
A: IP65 fixtures are protected against dust and low-pressure water jets, making them suitable for general outdoor use. IP67 fixtures are completely dust-tight and can withstand temporary immersion in water up to 1 meter deep, ideal for low-lying landscape areas prone to flooding.
A: This is caused by voltage drop. As current travels through the wire, resistance lowers the voltage. If the wire gauge is too thin or the run is too long, the final fixtures receive less power, resulting in diminished light output and color shifting.
A: A potted driver is encased in a thermally conductive epoxy compound. This encapsulation protects the sensitive electronic components from moisture ingress, prevents damage from physical vibration, and helps dissipate heat more effectively than unpotted drivers.
A: Dark Sky compliance requires fixtures to minimize light pollution by directing illumination downward. These fixtures must have a BUG (Backlight, Uplight, Glare) rating that ensures zero uplight, protecting nocturnal ecosystems and maintaining visibility of the night sky.
A: Standard powder-coated aluminum will corrode rapidly in coastal environments due to salt spray. If aluminum is required, it must feature a specialized marine-grade finish that has passed extensive salt-spray testing. Otherwise, cast brass or copper is recommended.
A: A multi-tap transformer provides multiple voltage output terminals. This allows installers to increase the starting voltage on longer cable runs, compensating for voltage drop and ensuring distant fixtures receive the correct operating power.
