Procuring improperly specified exterior fixtures carries heavy hidden costs. Premature failure, voided warranties, safety hazards, and compounding maintenance expenses quickly drain project budgets. Project managers often face confusion between vague marketing terms like waterproof outdoor lights and standardized ingress protection testing. This disconnect frequently leads to misaligned product selection for specific environmental risks.
Maximizing the return on investment for Outdoor LED Lighting requires a rigorous understanding of IP ratings. You must evaluate environmental variables and manufacturer testing methodologies to ensure long-term reliability. Specifying the correct fixture means looking past the sales brochure and understanding the engineering behind the seal.
IP Ratings are Application-Specific: A higher IP rating is not universally better; specifying IP68 for a wall pack introduces unnecessary costs and potential thermal management trade-offs.
The IP65 vs. IP66 Baseline: While the IP65 lighting standard serves as the historical minimum threshold for fixtures exposed to rain and dust, commercial-grade installations increasingly demand IP66 to combat high-pressure washdowns and severe weather.
Beyond the Rating: True fixture longevity relies on the synergy between the IP rating, gasket material quality, UV resistance, and thermal venting to prevent internal condensation.
Verification is Mandatory: Relying solely on spec sheets is risky; rigorous vetting of an outdoor lighting manufacturer requires proof of third-party testing, physical packaging markings, and realistic warranty terms.
Standardizing the evaluation criteria requires defining exactly what the IEC 60529 standard measures and what it omits. The Ingress Protection (IP) rating system provides a universally accepted framework for classifying the degrees of protection provided against the intrusion of solid objects, dust, accidental contact, and water in electrical enclosures. We rely on these numbers in the field to prevent catastrophic electrical failures.
The first digit in an IP rating scales from 0 to 6. It indicates the level of protection that the enclosure provides against access to hazardous parts and the ingress of solid foreign objects. For exterior lighting, you should focus almost exclusively on levels 5 and 6. A rating of 5 means the fixture is dust-protected. Dust may enter, but not in sufficient quantity to interfere with the satisfactory operation of the equipment. A rating of 6 indicates the fixture is completely dust-tight. This metric protects sensitive electronics from wind-blown sand, dirt, and fine debris on active job sites.
The second digit scales from 0 to 9K, representing protection against harmful ingress of water. Understanding the critical differences here prevents catastrophic failures during heavy storms or routine maintenance.
Liquid Ingress Level | Protection Description | Field Application Notes |
|---|---|---|
Level 4 | Splashing water from any direction. | Suitable only for covered areas like deep eaves. |
Level 5 | Water jets from a 6.3mm nozzle. | Standard rain exposure. |
Level 6 | Powerful water jets from a 12.5mm nozzle. | Heavy storms and commercial washdowns. |
Level 7 | Temporary immersion up to 1 meter for 30 mins. | In-ground well lights prone to flooding. |
Level 8 | Continuous immersion beyond 1 meter. | Submersible pool and fountain fixtures. |
Level 9K | High-pressure, high-temperature steam jets. | Industrial sanitation environments. |
Marketing departments frequently use ambiguous terms. Clarify why "waterproof" is an ambiguous marketing term, whereas IP ratings provide verifiable engineering thresholds. A fixture labeled waterproof might survive a light rain shower but fail instantly when hit by a landscape sprinkler. IP ratings remove this ambiguity by assigning specific, tested performance metrics to the enclosure.
Local weather conditions dictate specification requirements. You cannot apply a one-size-fits-all approach to exterior illumination. Evaluating micro-climates ensures the selected fixtures will survive their specific deployment environment.
Coastal environments present severe challenges. Salt spray, high humidity, and wind-driven rain aggressively attack fixture housings. These areas require IP66 or higher ratings combined with marine-grade protective coatings to prevent rapid corrosion.
Cold climates and extreme temperature zones introduce the risk of freeze-thaw cycles. Heavy snow accumulation, ice load, and thermal cycling lead to internal condensation. Fixtures in these zones require IP65 or IP66 ratings, but they must also feature integrated pressure-equalizing vents to manage internal moisture.
High-debris and desert areas demand absolute protection against particulate matter. Industrial sites or dusty regions require absolute dust-tight seals, making an IP6x rating non-negotiable to prevent diode degradation.
The physical mounting angle impacts water pooling, snow loading, and ingress risk over time. An IP65 fixture mounted facing downward might perform flawlessly for a decade. Mount that exact same fixture facing upward, and water may pool on the lens gasket. Over time, UV degradation weakens the seal, and standing water eventually breaches the enclosure. Always consider the installation orientation when evaluating the necessary IP rating.
Different applications require different baseline protections. Specifying the correct rating depends entirely on how and where the fixture operates.
LED flood lights typically require an IP65 or IP66 rating. The primary evaluation dimension is the fixture's ability to withstand high-pressure cleaning and heavy, wind-driven storms without compromising the optical lens seal. Area lighting often sits high on poles, exposing it to extreme wind and driving rain.
Landscape fixtures operate in harsh ground-level conditions. Above-ground pathway lights typically require IP65. In-ground well lights demand IP67. You must evaluate their vulnerability to lawn chemicals, standing water, soil moisture, and physical impact from maintenance equipment like string trimmers.
Linear lighting specifications vary wildly based on placement. Indoor or dry applications use IP20 or IP33. Splash-resistant under-eave installations use IP65. Fully potted or submersible silicon sleeves require IP67 or IP68. When assessing linear flex, evaluate the degradation from direct UV exposure and the inherent vulnerability at cutting and connection points.

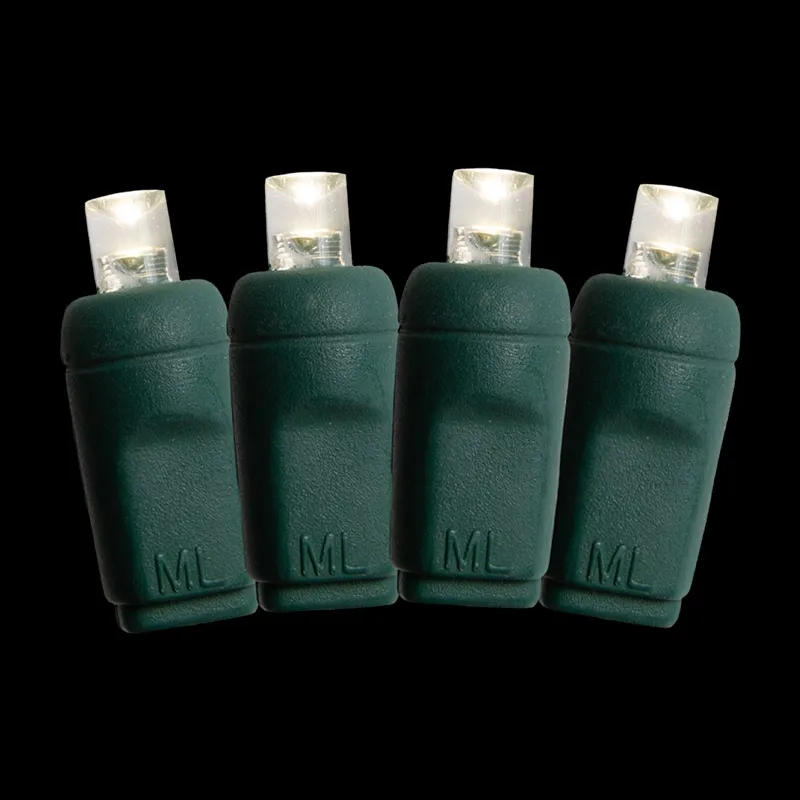

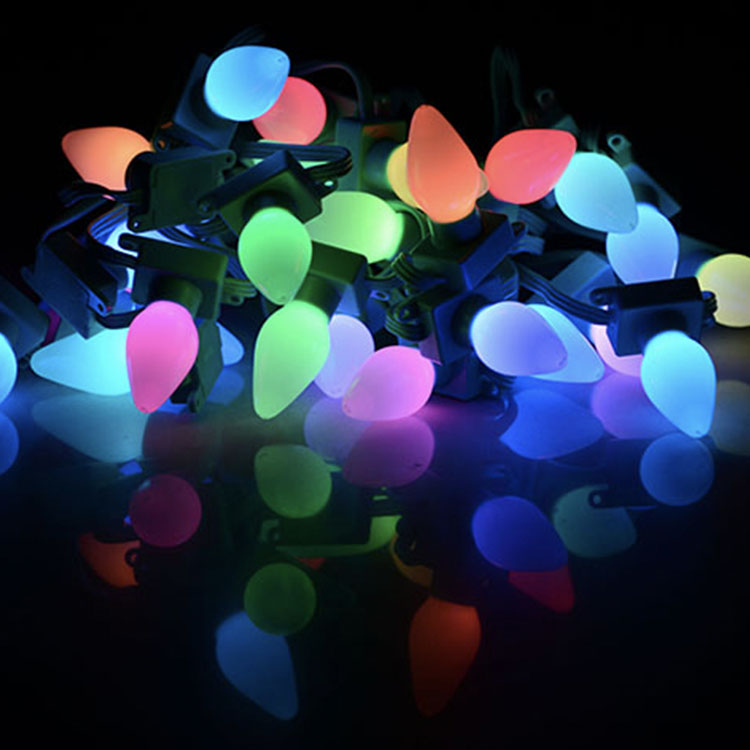

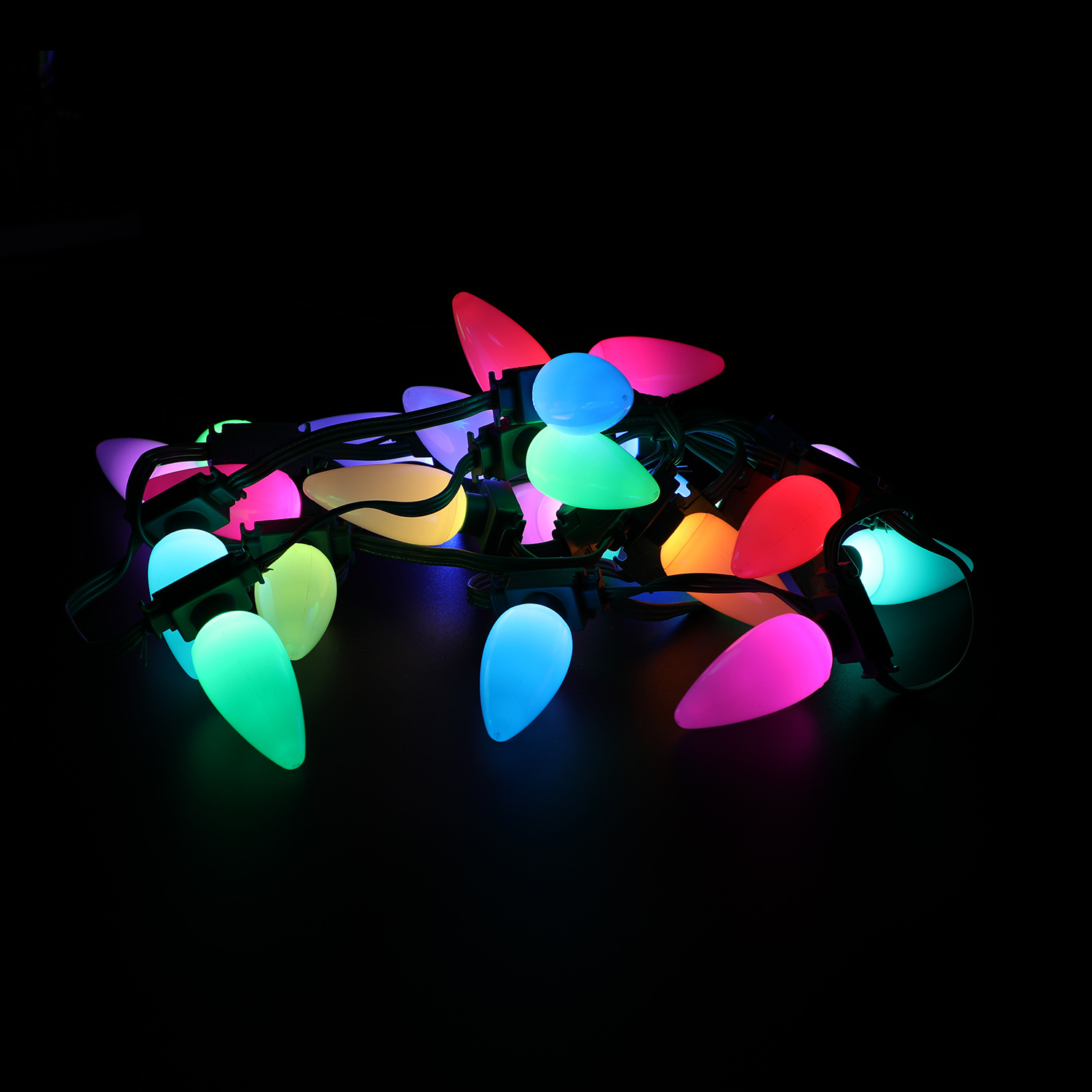

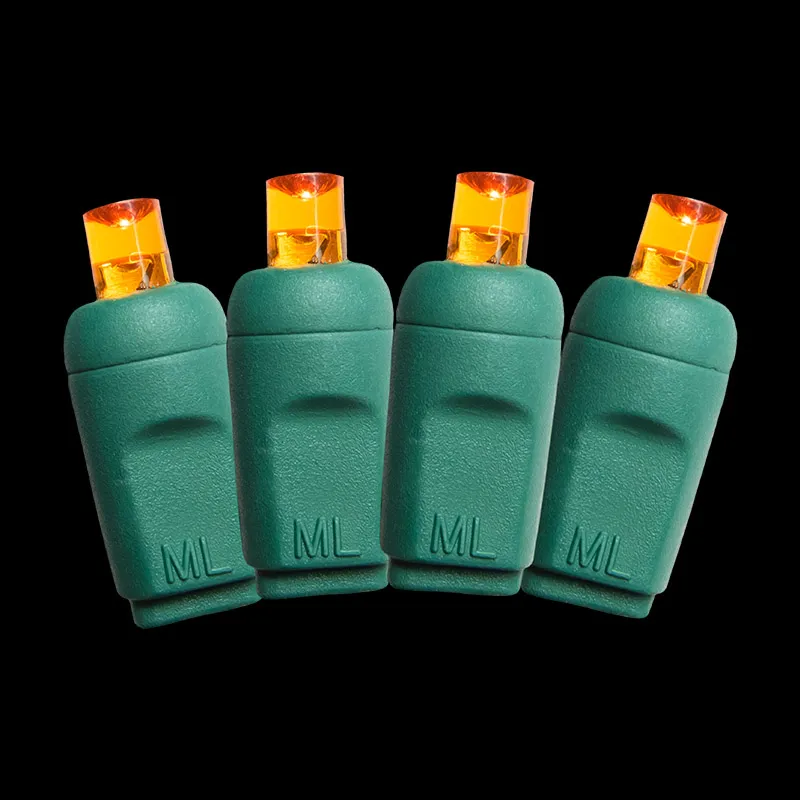

LED string lights range from IP44 for covered, temporary installations to IP65 for permanent exposed architectural accents. The critical evaluation dimension involves assessing the weak points at connection joints and power supplies. These components often carry lower IP ratings than the diodes themselves, creating hidden failure points in the system.
Understanding the conceptual trade-offs between different ratings prevents over-specifying and under-performing installations.
IP65 (Water Jets): The IP65 lighting standard serves as the traditional industry standard for general outdoor use. It remains cost-effective and allows for standard heat sink designs that efficiently manage thermal output.
IP66 (Powerful Water Jets): This rating is increasingly recommended as the new baseline for commercial outdoor lighting. It is necessary for heavy washdown areas, coastal exposure, or extreme weather. Achieving IP66 requires heavier gasketing and tighter manufacturing tolerances.
IP67 (Temporary Immersion): Required for in-ground fixtures. The primary trade-off is thermal management. Fully sealed fixtures trap heat, requiring advanced thermal management like potting compounds, which increases the unit cost.
IP68 (Continuous Immersion): Strictly for submersible applications like pools and fountains. Over-specifying this for standard outdoor use restricts thermal dissipation, shortens diode lifespan, and wastes budget.
A high IP rating on a spec sheet does not guarantee a decade of flawless performance. Real-world implementation introduces variables that degrade seals over time.
A perfectly sealed IP65 fixture can draw in moisture through a vacuum effect when cooling down. As the internal components heat up during operation, the air inside expands and pushes out. When the light turns off and cools rapidly, the air contracts, creating a vacuum that pulls humid air past the gaskets. You mitigate this by specifying fixtures with Gore-Tex or similar breather valves that equalize pressure while blocking liquid water.
UV exposure, ozone, and extreme temperatures degrade silicone and EPDM rubber seals over time. A fixture rated IP66 on day one might effectively lower to an IP44 rating after three years of baking in the desert sun. High-quality, UV-stabilized gasket materials are essential for maintaining the integrity of the IP rating over the fixture's lifespan.
The most common failure point in exterior illumination is not the primary lens gasket. It is the cable entry point. Improperly sealed cable glands, missing drip loops, and unsealed junction boxes allow water to wick directly into the fixture housing, bypassing the main IP seals entirely.
Trusting a manufacturer's self-reported data carries significant risk. You must actively vet your outdoor lighting manufacturer to ensure their products meet the claimed specifications.
Request and verify third-party testing reports from recognized laboratories like UL, ETL, TÜV, or Intertek. Do not accept self-certified IP claims. Legitimate manufacturers will readily provide these testing documents upon request.
Understand how to read IP ratings and safety certification logos directly on the product packaging and fixture housing. This helps you avoid counterfeit or falsely rated goods. The markings should be permanently stamped or molded into the housing, not just applied as a cheap sticker.
Evaluate the housing materials that protect the IP seals. Die-cast aluminum and UV-stabilized polycarbonate offer robust protection. Ensure all exposed hardware utilizes marine-grade stainless steel to prevent rust from compromising the structural integrity of the seal.
Analyze the fine print of manufacturer warranties. Look specifically for clauses regarding water damage, corrosion, maintenance requirements, and labor replacement costs. A warranty that voids upon evidence of water ingress on an IP65 fixture is a massive red flag.
Audit your current project specifications against the actual site conditions and micro-climates.
Request technical data sheets and third-party testing reports from your shortlisted vendors.
Inspect physical product samples for integrated breather valves and marine-grade hardware.
Contact a qualified lighting specialist for a site-specific consultation to ensure your selections match reality.
A: For covered exterior areas, IP44 provides adequate protection against splashing water. However, for fully exposed environments facing rain and wind, IP65 or IP66 serves as the mandatory baseline to ensure long-term reliability and safety.
A: No. IP65 protects against low-pressure water jets from any direction. It is highly water-resistant but will fail if submerged or subjected to high-pressure washdowns. True waterproof protection for submersion requires an IP68 rating.
A: IP66 fixtures withstand powerful water jets, simulating heavy storms and high-pressure cleaning. Commercial environments face harsher conditions and more aggressive maintenance routines, making the tighter seals of IP66 a safer long-term investment.
A: You can, but it is generally not recommended. IP67 fixtures are fully sealed for temporary immersion, which traps heat. This requires expensive thermal management solutions. Over-specifying to IP67 for a wall mount wastes budget and complicates cooling.
A: Use IP65 for splash resistance under eaves or covered patios. Use IP67 for temporary wet areas or ground-level installations exposed to heavy rain. Reserve IP68 exclusively for continuous underwater installations like pools.
A: Moisture usually enters through thermal cycling. As the fixture heats and cools, it creates a vacuum that pulls humid air past weak seals. It can also occur if field-cut connections are not properly sealed with appropriate dielectric grease and heat shrink.
A: Request third-party testing reports from certified laboratories like UL, ETL, or TÜV. Verify the certification numbers in the respective laboratory's online database. Additionally, check for permanent physical certification marks molded into the fixture housing.
