Investing in bespoke exterior illumination carries high stakes. Outdoor environments are uniquely hostile to electrical infrastructure, subjecting fixtures to relentless UV degradation, moisture ingress, and extreme temperature fluctuations. Off-the-shelf products frequently fail to meet specific architectural requirements, branding guidelines, or localized environmental demands. Transitioning to custom orders solves these design limitations but introduces significant risks regarding compliance, manufacturing quality, and long-term maintenance.
Navigating these challenges requires a strict framework. You must evaluate technical specifications meticulously and vet your manufacturing partner thoroughly. Mitigating the risks associated with custom fabrication ensures a durable installation with a high return on investment. This guide breaks down the critical steps to specify, evaluate, and order Custom Outdoor Lighting that survives harsh conditions while meeting exact project requirements.
Environmental Ratings are Non-Negotiable: Distinguishing between UL dry, damp, and wet ratings alongside specific IP codes is critical for preventing premature fixture failure.
Scale and Proportion Dictate Visual Success: Custom fixtures must be architecturally proportioned to prevent aesthetic mismatch on site.
Compliance Dictates Design: Local ordinances, HOA rules, and Dark Sky compliance must be integrated into the design phase before manufacturing begins.
OEM Vetting Mitigates Risk: Partnering with a proven lighting manufacturer requires evaluating their prototyping process, warranty structures, and quality assurance protocols.
Smart Integration Requires Infrastructure: Specifying an RGB lighting system or advanced controls demands upfront planning for voltage drop, wiring topology, and thermal management.
Balancing aesthetic goals with photometric requirements forms the foundation of successful exterior illumination. Engineers must balance lumens, beam spread, and color rendering index against the visual design of outdoor decorative lights. A fixture might look stunning on a CAD drawing but fail to provide safe pathway illumination if the optics are poorly designed. You need to specify the exact beam angle required to hit the target surface without spilling light into unwanted areas.
Designer scale rules dictate visual success. Custom fixtures must be architecturally proportioned relative to building facades, entryways, and columns. A common guideline dictates sizing fixtures at one-third to one-quarter the height of the adjacent structural element. Ignoring these proportions results in fixtures that either visually drown the space or look insignificant from the street. When dealing with massive commercial facades, scaling up the fixture size often requires upgrading the internal structural supports of the housing.
Documenting specific use cases guides the engineering process. Clearly define whether the primary goal is pathway safety, architectural accentuation, or security. This documentation directly influences the required beam angle, shielding, and lumen output of the final product. For example, security applications demand high lumen output and wide beam spreads, while architectural accentuation relies on tight, focused beams to highlight specific textures or columns.
Integrating custom lighting solutions requires different planning phases for new builds compared to retrofits. New construction allows for seamless conduit routing and optimized junction box placement. You can design the structural supports specifically to handle the weight of heavy, cast-metal custom fixtures. Coordination with structural engineers ensures that mounting points are reinforced before the final facade materials are applied.
Retrofitting demands strict site surveys. You must evaluate existing architectural load-bearing limits. Heavy custom fixtures cannot hang from standard drywall or aged fascia boards without structural reinforcement. Conduit accessibility often dictates fixture placement in retrofit scenarios, forcing designers to adapt their photometric layouts to match existing electrical infrastructure. Upgrading wiring in a retrofit scenario often involves trenching or surface-mounted conduit, which impacts the overall aesthetic.
Conduct a comprehensive site survey to map existing electrical panels and conduit runs.
Verify the load-bearing capacity of the intended mounting surfaces.
Identify potential obstacles for new conduit routing, such as mature tree roots or hardscaping.
Evaluate the condition of existing junction boxes and upgrade them to weather-resistant models if necessary.
Custom fixtures must be designed with long-term maintenance in mind. Fully sealed, non-serviceable single-unit fixtures force you to replace the entire unit if a single component fails. Instead, specify modular component designs. Swappable LED engines and independent drivers allow maintenance teams to replace faulty parts quickly without removing the entire housing from the wall or ground.
Evaluate the availability of replacement parts over a 10-to-15-year lifecycle. When ordering custom runs, request additional LED boards and drivers to keep in local inventory. This ensures that if a component fails years down the line, you have the exact matching part ready, preventing mismatched color temperatures or lumen outputs across your installation.
Environmental ratings dictate fixture survival. UL Dry ratings apply strictly to dry indoor-outdoor transitional spaces. These include enclosed, climate-controlled entryways. Dry-rated components must never creep into exposed spaces. Even ambient humidity can compromise their unsealed electrical contacts, leading to rapid failure and potential short circuits.
UL Damp ratings cover protected exterior areas. Think covered patios, soffits, and porticos. These areas experience condensation and ambient moisture but no direct water spray. The internal components are protected against high humidity, but the housings are not sealed against driving rain.
UL Wet ratings are mandatory for direct exposure. If rain, snow, runoff, or ocean spray can hit the fixture, it requires a wet rating. These fixtures feature heavy-duty silicone gaskets, sealed wire entry points, and specialized drainage channels to prevent water pooling. Misapplying a damp- or dry-rated fixture in an exposed wet location voids warranties immediately, accelerates galvanic corrosion, and creates severe electrical safety hazards.
Ingress Protection ratings provide a granular breakdown of weather resistance. Matching the IP rating to the specific installation environment prevents premature failure. The first digit represents protection against solids, while the second digit represents protection against liquids.
IP Rating | Solid Protection | Liquid Protection | Ideal Outdoor Application |
|---|---|---|---|
IP65 | Dust-tight | Protected against low-pressure water jets. | Exposed wall sconces, standard architectural facades. |
IP66 | Dust-tight | Protected against high-pressure water jets. | Marine environments, areas subject to heavy washdowns. |
IP67 | Dust-tight | Protected against temporary immersion (up to 1m). | Grade-level well lights, heavy rain exposure areas. |
IP68 | Dust-tight | Protected against continuous submersion. | Submersible landscape features, fountains, pools. |
Material selection determines longevity. Marine-grade 316 stainless steel offers exceptional rust resistance, making it the standard for coastal applications. Cast brass patinas naturally and withstands harsh elements, often outlasting the building itself. Extruded aluminum requires robust surface treatments to survive, as raw aluminum oxidizes rapidly in damp environments. Composite polymers resist corrosion entirely but may suffer UV degradation over time, leading to brittleness.
Powder coating and anodizing processes prevent galvanic corrosion. This is especially critical in coastal areas with high salinity. Environments exposed to chemical treatments, like lawn fertilizers or pool chlorine, also demand heavy-duty powder-coated finishes to prevent the metal housings from disintegrating. Specify a multi-stage pre-treatment process before powder coating to ensure maximum adhesion and durability.
International Dark-Sky Association certification requires specific engineering. Fixtures must be fully shielded, meaning no light is emitted above the horizontal plane. They must utilize specific, warm color temperatures, typically 3000K or lower. Zero upward light emission prevents skyglow and protects nocturnal ecosystems, which is increasingly mandated by local municipalities.
Engineering custom fixtures for Dark Sky compliance involves precise optics. You must minimize glare and light trespass. Recessed diodes, internal louvers, and hex baffles direct light exactly where needed. This ensures ground-level visibility remains uncompromised while adhering to strict environmental standards. When designing custom pole lights or bollards, the optical chamber must be engineered to push light down and out, rather than scattering it indiscriminately.
Homeowner Associations and municipal governments frequently restrict exterior lighting. Common limitations include maximum lumen output per property, often calculated in total lumens per acre. Many zones restrict hours of operation, requiring automated shut-offs or dimming protocols after midnight. Some municipalities strictly prohibit cool color temperatures above 3000K to maintain a specific neighborhood aesthetic.
Always secure necessary structural and municipal approvals before finalizing a custom order. Review local zoning codes thoroughly. Submit photometric plans to the architectural review board. Failing to secure these approvals can result in forced removal of the installed fixtures, leading to massive project delays and wasted resources.

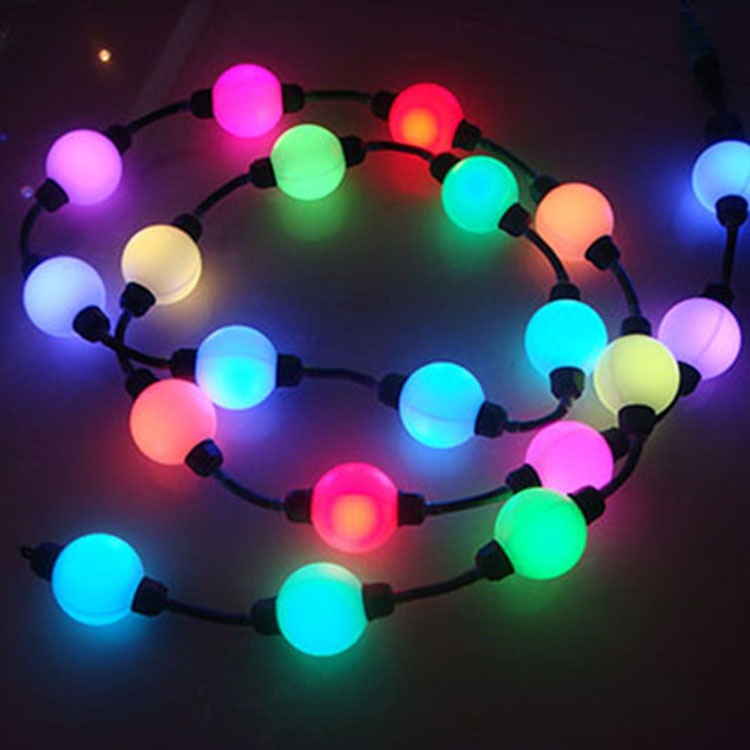

Integrating color-changing capabilities requires robust internal engineering. An RGB lighting system adds complexity to the driver and diode layout. You must evaluate the trade-offs between standard RGB and RGBW systems based on the specific needs of the site.
RGBW systems provide superior color accuracy. They deliver a dedicated, high-quality white light that standard RGB diodes cannot replicate. Tunable white systems offer adjustable color temperatures, allowing the property to shift from crisp security lighting to warm ambient lighting. These advanced diode arrays require larger housings to manage the increased heat generation, which must be factored into the physical design of the custom fixture.
Industry-standard control protocols dictate how the system operates. DMX provides granular, theatrical-level control for complex color shows, allowing individual addressing of every fixture on the network. DALI offers robust, two-way communication for architectural dimming, providing feedback on fixture status and power consumption. Low-voltage smart controllers provide user-friendly app interfaces for residential applications.
Infrastructure requirements must be planned early. DMX requires shielded cabling to prevent signal interference from nearby power lines. Physical controllers need NEMA-rated enclosures for weather protection. Large-scale outdoor installations require strategic wireless repeater placement to maintain signal integrity across expansive properties. Hardwiring data lines is always preferred over wireless mesh networks for permanent, reliable installations.
Differentiating between true Original Equipment Manufacturers and white-label assemblers is critical. True OEMs fabricate fixtures from the ground up, engineering the housings, optics, and thermal management systems specifically for your project. Assemblers merely modify existing off-the-shelf components, limiting your design flexibility. Specifying OEM outdoor lights ensures the final product matches your exact architectural specifications.
A dedicated lighting manufacturer maintains rigorous quality control. They control the entire supply chain, from raw aluminum extrusion to final driver assembly. This capability is necessary for meeting complex requirements and ensuring long-term reliability. When vetting a partner, ask to see their manufacturing facility or request detailed documentation of their in-house engineering capabilities.
Custom manufacturing follows standard phases. It begins with CAD modeling and photometric simulation to verify light output and distribution. Physical prototyping follows, allowing for real-world evaluation of the finish, scale, and mounting hardware. Final production only begins after the prototype is approved by all stakeholders.
Demand specific QA tests from your manufacturing partner. Request thermal chamber testing data to verify heat sink performance under extreme ambient temperatures. Salt spray testing confirms the durability of the powder coat against coastal corrosion. Integrating sphere testing guarantees the final lumen output, color rendering, and color temperature match the initial specifications exactly.
A robust warranty for custom fixtures must cover multiple failure points. It should cover LED drivers, diode degradation, and housing finish. Read the fine print regarding coastal installations, as many standard warranties exclude high-salinity environments unless specific marine-grade materials and coatings are specified.
Guaranteed replacement part availability is crucial. Custom runs mean you cannot simply buy a replacement at a local distributor. Ensure the manufacturer commits to stocking or fabricating replacement LED engines and drivers for your specific run to avoid complete system replacements if a single unit fails.
Voltage drop plagues low-voltage outdoor installations. As electricity travels over long cable runs, resistance causes the voltage to decrease. This results in dimming or flickering fixtures at the end of the run, ruining the visual consistency of the design.
Engineering must account for this physics principle. Custom fixture wattage, cable gauge, and transformer placement must be calculated concurrently. Upgrading to thicker gauge wire, such as 10 AWG or 8 AWG for long runs, and utilizing multiple, strategically placed transformers prevents voltage drop. Center-feeding the lighting run rather than daisy-chaining from one end also helps distribute voltage evenly across all fixtures.
Inadequate heat sinking destroys LED fixtures. Outdoor fixtures operating in hot climates face severe thermal stress. Poor thermal management leads to premature LED failure, reduced lumen output, and noticeable color shift over time.
Thermal modeling is mandatory during the design phase. High-output outdoor fixtures require substantial aluminum heat sinks to draw heat away from the diode array. Thermal stress testing ensures the fixture can operate continuously at peak ambient temperatures without degrading the electrical components. Never compromise on the size or quality of the heat sink to achieve a slimmer fixture profile.
Successful custom exterior illumination requires a rigorous, evidence-based approach. Aesthetic design must align with environmental ratings, physical scaling, compliance, and material science. To ensure a successful project, take the following steps:
Compile comprehensive site-specific environmental data, including salt exposure and temperature extremes.
Finalize exact photometric requirements and secure necessary municipal approvals before ordering.
Filter potential manufacturing partners based on their transparency regarding IP/UL testing and QA protocols.
Request a physical prototype or detailed CAD mockup from a qualified OEM to verify architectural proportions.
A: Dry-rated fixtures are for enclosed, climate-controlled transition spaces. Damp-rated fixtures handle indirect moisture and condensation in covered areas like patios. Wet-rated fixtures are engineered for direct exposure to rain, snow, and water spray, featuring sealed gaskets to prevent moisture ingress.
A: Look for a manufacturer with in-house engineering and dedicated QA testing facilities. They should possess structural customization capabilities and provide a portfolio of similar custom deployments. Transparency regarding testing data and prototyping is essential.
A: Outdoor RGB systems require IP67+ rated drivers and sealed diode arrays. They must utilize UV-resistant lenses to prevent yellowing and feature robust thermal management to handle the heat generated by multi-color diode configurations.
A: Dark Sky compliant lights are engineered to minimize light pollution. They feature physical shielding to ensure zero upward light emission. They typically utilize warm color temperatures to reduce skyglow and protect nocturnal environments.
A: Utilize physical mockups or augmented reality CAD drawings during the design phase. Adhere to standard architectural rules, such as sizing the fixture to one-third or one-quarter the height of the adjacent door or structural column.
A: Timelines vary based on complexity. Initial CAD design and photometric simulation take 2-4 weeks. Physical prototyping adds 3-5 weeks. Final production, QA testing, and shipping generally require an additional 6-12 weeks after prototype approval.
